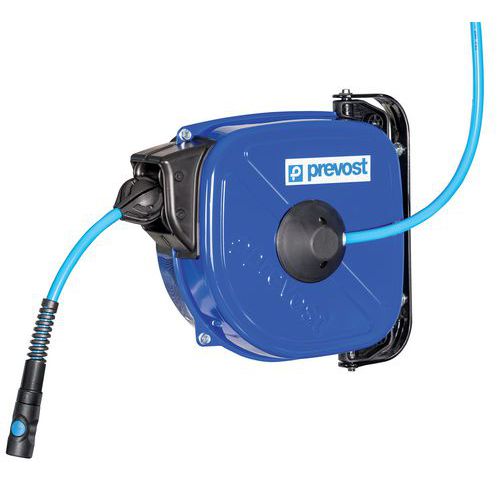

DRF-series enclosed compressed air reel - 8x12, 15 m
Item code:
A276262X
Click and drag to spin
£ 185.29
£ 222.35 (Incl. VAT)
unit
?Quantity? item(s) are available
This product is only available whilst stocks last
Description
Specifications
Documentation
Accessories
Videos
Additional
Q&A & Reviews
Reviews
Description
- Robust cold rolled and hot-dip galvanised steel reel.
- UV-resistant housing with blue epoxy paint.
- Pipe locking technology with ratchet stop.
- Air inlet with coupler for 1-m hose.
- Reel with 180° swivelling bracket.
Technical Specification
| Product Information | Description |
|---|---|
| Product Name | DRF-series enclosed compressed air reel, Material: Steel, Work hose length: 15 m, Max. pressure: 12 bar |
| Brand | Prevost |
| Conditioning | unit |
| Technical Specification | Description |
|---|---|
| Material | Steel |
| Max. pressure (bar) | 12 bar |
| Working pressure (bar) | 12 bar |
| Flexible Ø (mm) | 15 mm |
| Work hose length (m) | 15 m |
| Admission hose length (m) | 1 m |
| Flow (L/min) | 350 L/min |
| Min. operating temperature (°C) | -15 °C |
| Max. operating temperature (°C) | 65 °C |
| Length (mm) | 385 mm |
| Width (mm) | 195 mm |
| Height (mm) | 355 mm |
| Manufacturer Ref. | DRF 0815IS |
