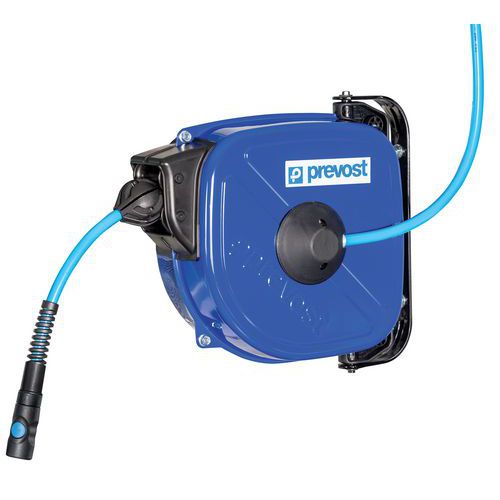

DRF-series enclosed compressed air reel - 12 bar

X
DRF-series enclosed compressed air reel - 12 bar
from £ 182.00  excl. VAT
From £ 218.40 incl. VAT
unit
Choose your product

Product options

There are 2 options to select from

Flexible Ø (mm)
12 mm

Work hose length (m)
12 m

Flow (L/min)
500 L/min

Manufacturer Ref.
DRF 0812IS

£ 182.00 unit

Flexible Ø (mm)
15 mm

Work hose length (m)
15 m

Flow (L/min)
350 L/min

Manufacturer Ref.
DRF 0815IS

£ 190.90 unit

Description

  • Robust cold rolled and hot-dip galvanised steel reel.
  • UV-resistant housing with blue epoxy paint.
  • Pipe locking technology with ratchet stop.
  • Air inlet with coupler for 1-m hose.
  • Reel with 180° swivelling bracket.

Product Information

Product Name DRF-series enclosed compressed air reel - 12 bar
Brand Prevost
Conditioning unit

Technical Specification

Material Steel
Working pressure (bar) 12 bar
Admission hose length (m) 1 m
Min. operating temperature (°C) -15 °C
Max. operating temperature (°C) 65 °C
Length (mm) 385 mm
Width (mm) 195 mm
Height (mm) 355 mm
