Pallet stacker with telescopic lifting boom - Capacity 250 kg

Item code:

  A036635
Email product
X

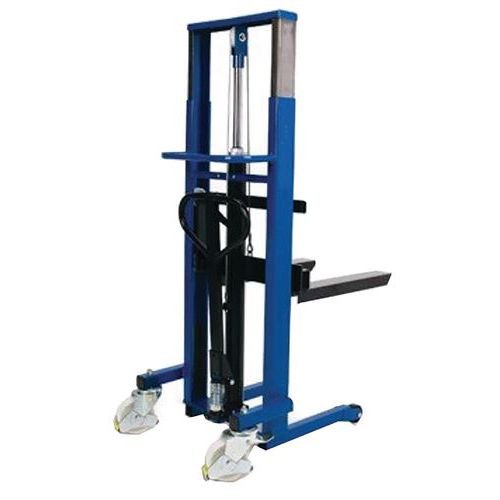

Pallet stacker with telescopic lifting boom - Capacity 250 kg
£ 1,260.00  excl. VAT
£ 1,512.00 incl. VAT
unit

Description

Hydraulic lift
  • Handle controls movement (push-pull method).
  • 3-position handle: raise, lower, neutral (disengages the handle from the pump).
  • Lowering speed controlled by a limiter.
  • Safety valve preventing lifting in case of overload.
  • Extendable and retractable mast offering a low height in the down position.
  • 2 nylon castors (1 fitted with brake)

Large stacking height

  • yes
  • 250 kg

Product Information

Product Name Pallet stacker with telescopic lifting boom, Load capacity: 250 kg, Max. lift height: 1830 mm
Brand Advanced Handling
Conditioning unit

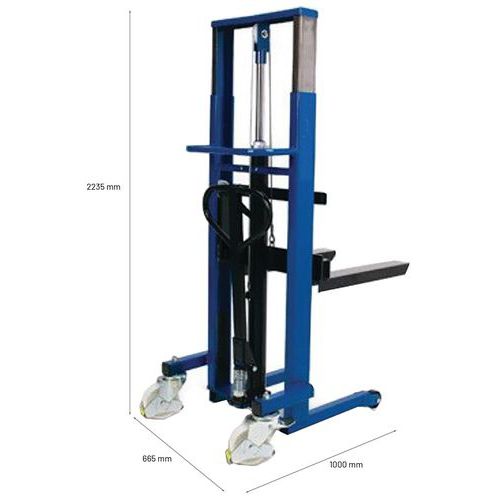

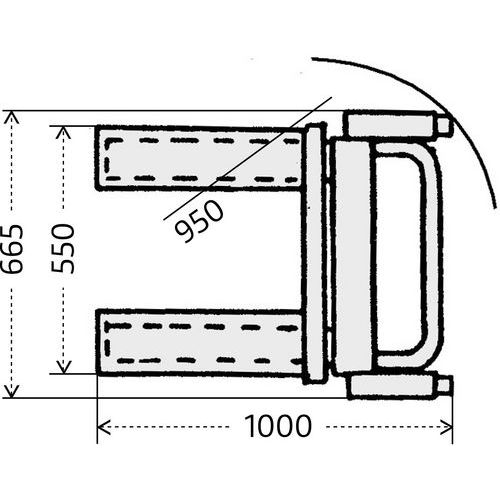

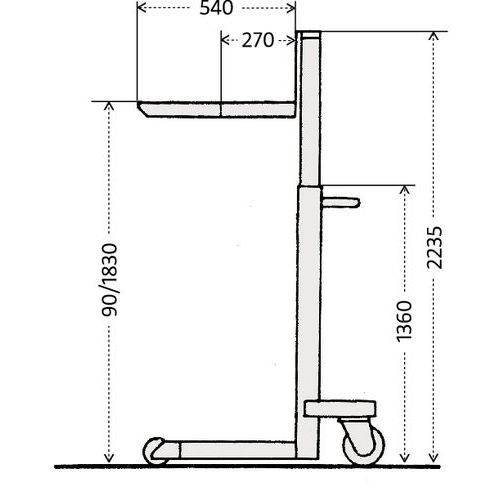

Technical Specification

Manufacturer Ref. ST250-1830-M-YW
Load capacity (kg) 250 kg
Min. lift height (mm) 90 mm
Max. lift height (mm) 1830 mm
O/A width (mm) 665 mm
O/A length (mm) 1000 mm
Fork length (mm) 540 mm
Max. width across forks (mm) 340 mm
Min. O/A height (mm) 1360 mm
Max. O/A height (mm) 2235 mm
Weight (kg) 98 kg
Lifting height per beam movement (mm) 40 mm
Customer warranty 3 YEARS
Ergonomic NO
