TRMS multimeter current clamp - Metrix

METRIX clamp multimeters: all the features of a clamp-on ammeter and a complete multimeter!

Compact and ergonomic TRMS multimeter current clamp. Current measurement up to 400 A AC (MX 350) and 400 A AC/A DC (MX 355). AC and DC voltage measurement up to 600 V. Resistance and continuity measurement. Frequency measurement (MX 350). Automatic zero DC (MX 355). TRMS measurements. Peak function (1 ms) (MX 355).

See more information...

X

£450.00 incl. VAT

£375.00 excl. VAT

unit

Item code:   AB12552

Add to Basket

Description

METRIX clamp multimeters: all the features of a clamp-on ammeter and a complete multimeter!

Compact and ergonomic TRMS multimeter current clamp. Current measurement up to 400 A AC (MX 350) and 400 A AC/A DC (MX 355). AC and DC voltage measurement up to 600 V. Resistance and continuity measurement. Frequency measurement (MX 350). Automatic zero DC (MX 355). TRMS measurements. Peak function (1 ms) (MX 355).

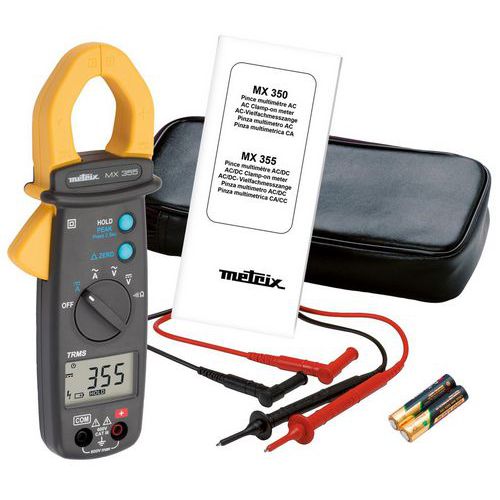

Clamp multimeter supplied with 2x 1.5-V AAA alkaline batteries, 1x set of operating instructions in 5 languages, 1x soft carry case, 1x set of test leads with test probes.

Customer warranty : 2 years

Environmental and/or social benefits

This packaging is 100% recyclable, which means that at the end of its life, all of its components can be recycled separately via specific recycling facilities.

Specifications

Product Information

Product Name	TRMS multimeter current clamp, Max. AC current: 400.0 A, Resistance Max.: 599.9 Ohm, AC Min. voltage: 0.05 V
Brand	Metrix
Packaging	unit

Technical Specification

Display	6000-count LCD
AC Min. voltage (V)	0.05 V
AC Max. voltage (V)	600.0 V
DC Min. voltage (V)	0.03 V
Min. AC current (A)	0.05 A
DC Max. voltage (V)	600.0 V
Max. AC current (A)	400.0 A
Min. DC current (A)	0.10 A
Max. DC current (A)	400.0 A
Min. resistance (Ohm)	0.2 Ohm
Resistance Max. (Ohm)	599.9 Ohm
Min. frequency (Hz)	10 Hz
Max. frequency (kHz)	100 kHz
EN Norm	EN 61010, CAT. III 600 V, EN 61326-1, EN 61010-1 (IEC 66-5)
Certification	CHECK REPORT
Fully recyclable packaging	YES - 100%
Weight (g)	243 g
AC/DC Max. current (A)	400.0 A
Thickness (mm)	36 mm
Manufacturer Ref.	MX355
Length (mm)	199 mm
AC/DC Min. current (A)	0.05 A
Width (mm)	75 mm
AC/DC Max. voltage (V)	600.0 V
Customer warranty	2 YEARS
