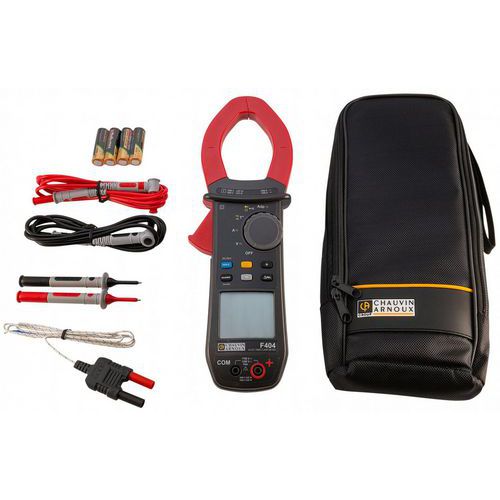

TRMS multimeter current clamp - Chauvin Arnoux
Item code: AB12667
£682.80 (Incl. VAT) £569.00 excl. VAT
unit
Description
Chauvin Arnoux clamp-on multimeters, fast and accurate measurements for all signal types and waveforms
TRMS multimeter current clamp - AC/DC.
Automatic AC/DC detection.
True InRush inrush current measurement.
Hold, min, MAX, RELative (ΔX) and differential (ΔX/X) measurements.
F404 suitable for photovoltaic applications.
Customer warranty : 3 years
Environmental and/or social benefits
This packaging is 100% recyclable, which means that at the end of its life, all of its components can be recycled separately via specific recycling facilities.
Specifications
Product Information
Product Name
TRMS multimeter current clamp, AC/DC Max. current: 1500 A, AC/DC Max. voltage: 1700 V
Brand
Chauvin Arnoux
Packaging
unit
Technical Specification
AC/DC Min. voltage (V)
0.15 V
AC/DC Max. current (A)
1500 A
AC/DC Max. voltage (V)
1700 V
Min. AC current (A)
0.25 A
Max. AC current (A)
1000 A
Min. DC current (A)
0.25 A
Max. DC current (A)
1500 A
Min. resistance (Ohm)
0.1 Ohm
Resistance Max. (kOhm)
100 kOhm
Min. frequency (Hz)
5 Hz
Max. frequency (kHz)
20 kHz
EN Norm
EN 61010-1 (IEC 66-5), EN 61326-1
Fully recyclable packaging
YES - 100%
Product weight (g)
600 g
Customer warranty
3 YEARS
Lengths (mm)
272 mm
Display
10000-dot backlit LCD
Width (mm)
92 mm
DC Min. voltage (V)
0.15 V
AC Min. voltage (V)
0.15 V
Thickness (mm)
41 mm
DC Max. voltage (V)
1700 V
AC Max. voltage (V)
1200 V
Cable Max. Ø (mm)
48 mm
