Sucker with permanent alnico magnet - With tapped hole

X
Sucker with permanent alnico magnet - With tapped hole
with threaded hole

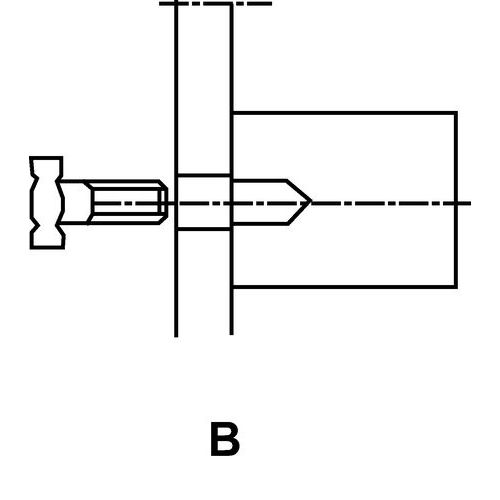

applied

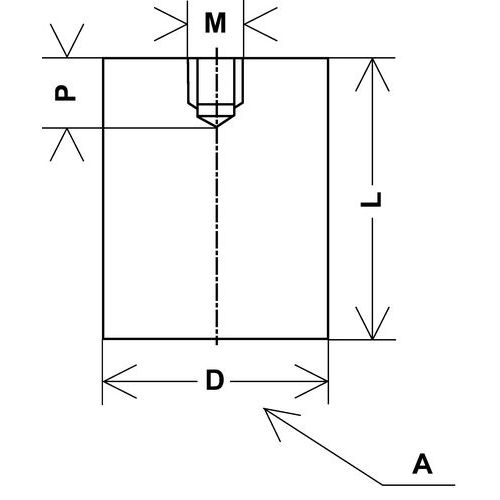

D : ØL : O/A heightM : tapping ØP : tapping depth

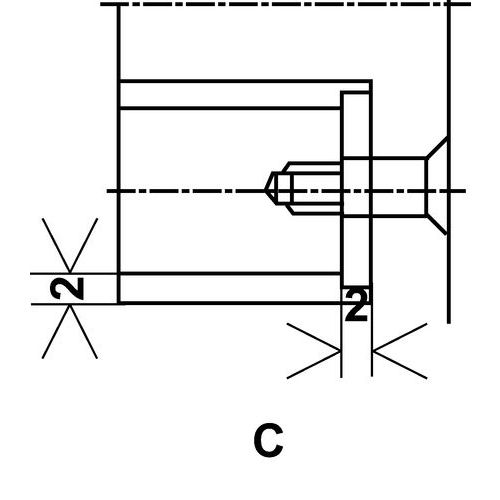

built-in

For fixtures subject to extreme temperatures

  • High demagnetising resistance thanks to the magnetic circuit.
  • Good resistance to mechanical stresses.
  • Steel-capped magnet with high magnetic permeability.
See more description
View Q&A
From
£37.50 excl. VAT
£45.00 incl. VAT
pack of 3 units £12.50 per unit
See all 5 options
  • Free delivery on all orders
  • Free returns within 30 days
  • Pay by card, account or Paypal
  • We'll beat any price by 5%

There are 5 options to select from

product image
A021032
Ø (mm)
12 mm
O/A height (mm)
17 mm
Tapping depth (mm)
4 mm
Tapping Ø
4 MM
Load capacity (daN)
1.3 daN
Weight (g)
15 g

Product Name
Sucker with permanent alnico magnet - With tapped hole
Brand
Walker Braillon magnetics
Conditioning
pack of 3 units

Model
With threaded hole
Min. operating temperature (°C)
-50 °C
Max. operating temperature (°C)
400 °C

£37.50 pack of 3 units

product image
A021033
Ø (mm)
17 mm
O/A height (mm)
20 mm
Tapping depth (mm)
7 mm
Tapping Ø
4 MM
Load capacity (daN)
5 daN
Weight (g)
35 g

Product Name
Sucker with permanent alnico magnet - With tapped hole
Brand
Walker Braillon magnetics
Conditioning
pack of 3 units

Model
With threaded hole
Min. operating temperature (°C)
-50 °C
Max. operating temperature (°C)
400 °C

£48.25 pack of 3 units

product image
A021034
Ø (mm)
20 mm
O/A height (mm)
24 mm
Tapping depth (mm)
8 mm
Tapping Ø
4 MM
Load capacity (daN)
7.5 daN
Weight (g)
55 g

Product Name
Sucker with permanent alnico magnet - With tapped hole
Brand
Walker Braillon magnetics
Conditioning
pack of 3 units

Model
With threaded hole
Min. operating temperature (°C)
-50 °C
Max. operating temperature (°C)
400 °C

£68.50 pack of 3 units

product image
A021035
Ø (mm)
24 mm
O/A height (mm)
30 mm
Tapping depth (mm)
8 mm
Tapping Ø
5 MM
Load capacity (daN)
11 daN
Weight (g)
95 g

Product Name
Sucker with permanent alnico magnet - With tapped hole
Brand
Walker Braillon magnetics
Conditioning
pack of 3 units

Model
With threaded hole
Min. operating temperature (°C)
-50 °C
Max. operating temperature (°C)
400 °C

£86.90 pack of 3 units

product image
A021036
Ø (mm)
35 mm
O/A height (mm)
42 mm
Tapping depth (mm)
7 mm
Tapping Ø
8 MM
Load capacity (daN)
20 daN
Weight (g)
280 g

Product Name
Sucker with permanent alnico magnet - With tapped hole
Brand
Walker Braillon magnetics
Conditioning
pack of 3 units

Model
With threaded hole
Min. operating temperature (°C)
-50 °C
Max. operating temperature (°C)
400 °C

£114.25 pack of 3 units

Common description for all models

For fixtures subject to extreme temperatures

  • High demagnetising resistance thanks to the magnetic circuit.
  • Good resistance to mechanical stresses.
  • Steel-capped magnet with high magnetic permeability.
  • 3 years
  • 20
