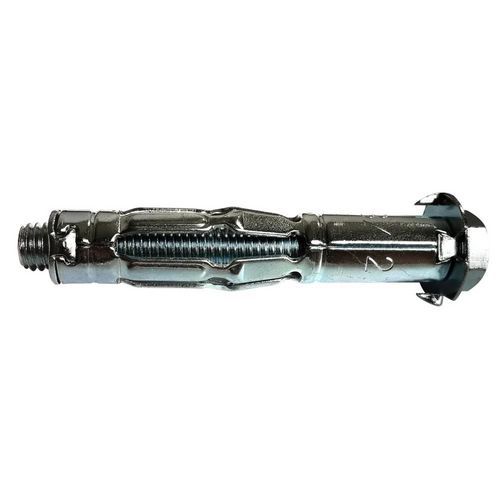

HM hollow wall anchor with hex-head screw- Fischer
HM hollow wall anchor with hex-head screw- Fischer
Metal cavity fixing with metric hex-head screw
Optimised for easy installation using pliers, an electric screwdriver or a manual screwdriver.
Detachable head for easy removal.
Manufactured in a single piece: no welding, no weak points.
Pre-curved arms for optimal expansion.
HM metal cavity anchor suitable for interim assembly.
The anchor to be used depends on the thickness of the panel, in order to allow optimum expansion in the cavity.
During installation, the expansion arms unfold and press on the reverse side of the panel.
The HM anchor can be installed using the installation pliers. When installing using an electric or manual screwdriver, the pre-assembled screw must be removed beforehand. When screwing in and expanding the fixing, either the attachment or a max. 6-mm plate must be used as a turning stop.
See more information...
HM hollow wall anchor with hex-head screw- Fischer, Plug length: 65 mm, Diameter Ø: 8 mm, Material: Steel
HM hollow wall anchor with hex-head screw- Fischer, Plug length: 65 mm, Diameter Ø: 8 mm, Material: Steel
Product temporarily unavailable, coming back soon.
HM hollow wall anchor with hex-head screw- Fischer
Item code: A975863
£46.25 excl. VAT £55.50 (Incl. VAT)
Pack of 50 £0.93 excl.VAT per unit
Description
Metal cavity fixing with metric hex-head screw
Optimised for easy installation using pliers, an electric screwdriver or a manual screwdriver.
Detachable head for easy removal.
Manufactured in a single piece: no welding, no weak points.
Pre-curved arms for optimal expansion.
HM metal cavity anchor suitable for interim assembly.
The anchor to be used depends on the thickness of the panel, in order to allow optimum expansion in the cavity.
During installation, the expansion arms unfold and press on the reverse side of the panel.
The HM anchor can be installed using the installation pliers. When installing using an electric or manual screwdriver, the pre-assembled screw must be removed beforehand. When screwing in and expanding the fixing, either the attachment or a max. 6-mm plate must be used as a turning stop.
Specifications
Product Information
Product Name
HM hollow wall anchor with hex-head screw- Fischer, Plug length: 65 mm, Diameter Ø: 8 mm, Material: Steel
Brand
Fischer
Packaging
<strong>Pack of 50</strong>
Technical Specification
Type of fixing accessories
DOWEL
Type of support
PLASTER
Number of parts
50
Diameter Ø (mm)
8 mm
Material
STEEL
Acceptable load (g/m²)
0 g/m²
Plug length (mm)
65 mm
Drilling Min. depth (mm)
75 mm
Drilling Ø (mm)
13 mm
