Combination spanner, Series 440, unit - Capacities 5.5 to 10mm

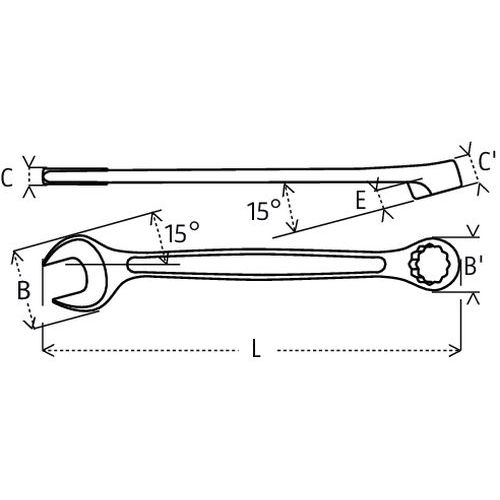

Capacity (Dimensions):

Slope:

Lengths (mm):

Manufacturer Ref.:

Head height (mm):

Fork thickness (mm):

OGV® profile for locking power and nut protection.
Thin heads facilitating accessibility.
Combination spanner with 30° return.
Easy access to nuts in series or semi-built-in: room for the eye, slanted at 15°.
Ergonomic handle.
Thinness of the heads: better compromise between power and accessibility.
Increased convenience: sleeve with variable cross-section to double the support area on the hand.

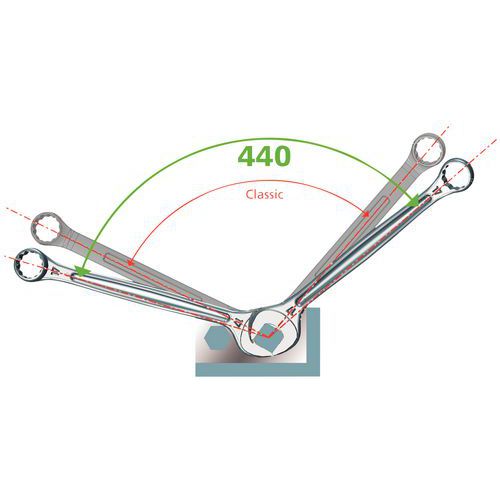

More accessibility with the eye: clearance of the eye (slanted at 15°) to access nuts in series or semi-built-in.
OGV^® profile: power and protection.
More powerful tightening.
Reduction of stresses thanks to wide contact areas.
Protection of the nut.
Drive via the sides of the nut: the angles are not stressed.

See more description

From

£5.15

excl. VAT

£6.18 incl. VAT

unit

Item code: : Select a variant

Description

OGV® profile for locking power and nut protection.
Thin heads facilitating accessibility.
Combination spanner with 30° return.
Easy access to nuts in series or semi-built-in: room for the eye, slanted at 15°.
Ergonomic handle.
Thinness of the heads: better compromise between power and accessibility.
Increased convenience: sleeve with variable cross-section to double the support area on the hand.
More accessibility with the eye: clearance of the eye (slanted at 15°) to access nuts in series or semi-built-in.
OGV^® profile: power and protection.
More powerful tightening.
Reduction of stresses thanks to wide contact areas.
Protection of the nut.
Drive via the sides of the nut: the angles are not stressed.

Product Name	Combination spanner, Series 440, unit - Capacities 5.5 to 10mm
Brand	Facom
Packaging	unit

Number of keys	1
Finish	Chrome-plated
Head Ø (mm)	58 mm, 60.7 mm, 63 mm, 65 mm, 68 mm, 9.2 mm, 10 mm, 11.2 mm, 12.8 mm, 13.3 mm, 14.1 mm, 14.2 mm, 15 mm, 16.9 mm, 17.2 mm, 18 mm, 19.2 mm, 19.3 mm, 21.1 mm, 21.2 mm, 22.2 mm, 23 mm, 23.9 mm, 24.5 mm, 25.3 mm, 26 mm, 27.8 mm, 28.4 mm, 28.7 mm, 29.5 mm, 30.9 mm, 31 mm, 32.3 mm, 32.6 mm, 33.6 mm, 35 mm, 35.6 mm, 36.4 mm, 37 mm, 37.8 mm, 38.7 mm, 39.2 mm, 40.6 mm, 41.2 mm, 42 mm, 43.1 mm, 43.5 mm, 45.4 mm, 46.1 mm, 46.9 mm, 49 mm, 51 mm, 53 mm, 55.5 mm
Norm	ISO 3318, NF E74-306, ISO 1711-1, ISO 691, ISO 7738
Reversible ratchet	no
Use	Close
