CA 5233 compact digital multimeter with AC/DC current up to 10 A or 600 A. Current clamp gives direct readings. High sensitivity with a resolution of 0.01 mV. Protected to withstand overloads up to 8000 V. VLowZ function to eliminate disturbance voltages.
CA 5233 TRMS compact digital multimeter - Chauvin Arnoux
CA 5233 TRMS compact digital multimeter - Chauvin Arnoux
CA 5233 - category IV to ensure maximum safety
CA 5233 compact digital multimeter with AC/DC current up to 10 A or 600 A. Current clamp gives direct readings. High sensitivity with a resolution of 0.01 mV. Protected to withstand overloads up to 8000 V. VLowZ function to eliminate disturbance voltages.
CA 5233 TRMS compact digital multimeter - Chauvin Arnoux
Item code: AB31247
£209.00 excl. VAT £250.80 (Incl. VAT)
unit
Description
CA 5233 - category IV to ensure maximum safety
CA 5233 compact digital multimeter with AC/DC current up to 10 A or 600 A. Current clamp gives direct readings. High sensitivity with a resolution of 0.01 mV. Protected to withstand overloads up to 8000 V. VLowZ function to eliminate disturbance voltages.

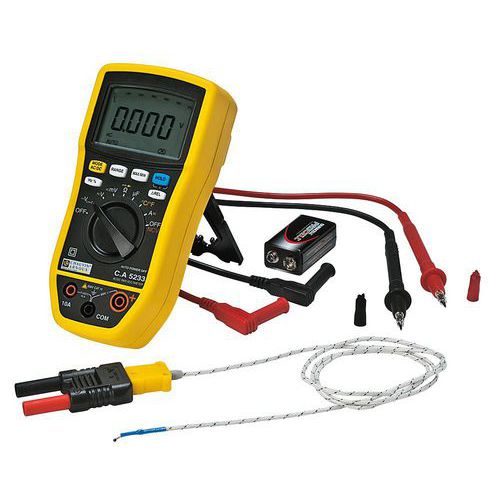

CA 5233 supplied with 2x test leads with test probes, temperature sensor and adapter, 1x 9-V alkaline battery and 1x set of operating instructions in 5 languages.
Customer warranty : 2 years
Environmental and/or social benefits
This packaging is 100% recyclable, which means that at the end of its life, all of its components can be recycled separately via specific recycling facilities.
Specifications
Product Information
Product Name
CA 5233 TRMS compact digital multimeter, Max. AC current: 10 A, Resistance Max.: 60 MOhm
Brand
Chauvin Arnoux
Packaging
unit
Technical Specification
Display
6000-count backlit display + 61-segment bar graph
AC Min. voltage (mV)
60 mV
AC Max. voltage (V)
600 V
Min. AC current (mA)
20 mA
DC Min. voltage (mV)
10 mV
DC Max. voltage (V)
600 V
Max. AC current (A)
10 A
Min. DC current (mA)
20 mA
Max. DC current (A)
10 A
Min. resistance (Ohm)
0.5 Ohm
Resistance Max. (MOhm)
60 MOhm
Min. frequency (Hz)
10 Hz
Max. frequency (Hz)
3000 Hz
EN Norm
EN 61326-1, EN 61010, Cat. III 1000 V, EN 61010, Cat. IV 600 V
Thickness (mm)
75 mm
Manufacturer Ref.
CA5233
AC/DC Max. current (A)
10 A
AC/DC Min. voltage (mV)
5 mV
AC/DC Max. voltage (V)
600 V
Width (mm)
75 mm
Weight (g)
320 g
AC/DC Min. current (mA)
20 mA
Length (mm)
155 mm
Fully recyclable packaging
Yes - 100%
Customer warranty
2 years
