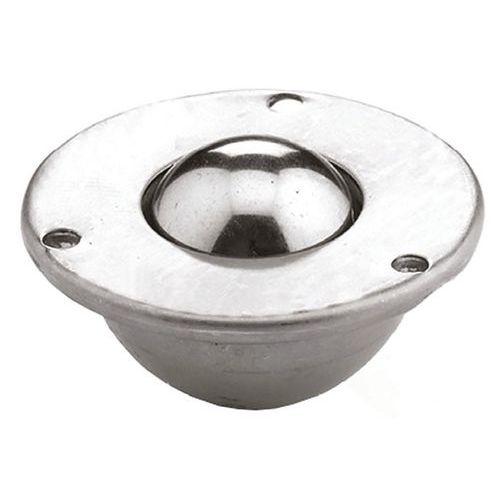

Ball transfer unit with flange - 3-screw fixing - Capacity of 80 to 120 kg
- Free delivery on orders over £50
- Free returns within 30 days
- Pay by card, account or Paypal
- We'll beat any price by 5%
X
Click and drag to spin
Specifications
Product Information
| Product Name | Ball transfer unit with flange, Max. load: 80 kg, Type of fixing: 3 screws, Model: Type 35, Ball Ø: 22.2 mm |
|---|---|
| Brand | Guitel |
| Packaging | unit |
Technical Specification
| Max. load (kg) | 80 kg |
|---|---|
| Type of fixing | 3 screws |
| Model | Type 35 |
| Ball Ø (mm) | 22.2 mm |
| Ball material | STAINLESS STEEL |
| Casing material | STAINLESS STEEL |
| Collar hight (mm) | 6.2 mm |
| Total overtaking (mm) | 13.4 mm |
| Ball overtaking with reinforcement (mm) | 9.8 mm |
| Effective Ø (mm) | 22 mm |
| O/A Ø (mm) | 22.2 mm |
| Fixing hole Ø (mm) | 3.5 mm |
| Base width (mm) | 33 mm |
| Pitch hole fixing (mm) | 39 mm |
| Base length (mm) | 14.3 mm |
| Top plate thickness (mm) | 3.6 mm |
| Fixing length (mm) | 45 mm |
| Height (mm) | 27.7 mm |
