Steel handling ball - Boxing in fixture

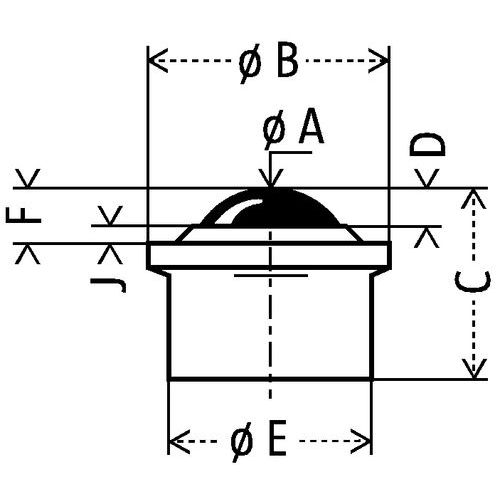

- Ø A : bille Ø- Ø B : Ø hors tout- C : hauteur hors tout- D : dépassement de la bille- Ø E : Ø utile- F : dépassement de la bille avec renfort- J : platine ép.

Steel handling ball - Boxing in fixture

Item code:   A001569

Product Information

Packaging unit

Technical Specification

Product Name Steel handling ball, Max. load: 55 kg, Type of fixing: Socket, Ball Ø: 25 mm, Ball material: Steel
Brand Guitel
Max. load (kg) 55 kg
Type of fixing Socket
Ball Ø (mm) 25 mm
Ball material Steel
Casing material Steel
Collar hight (mm) 8 mm
Ball overtaking with reinforcement (mm) 12 mm
Effective Ø (mm) 36 mm
O/A height (mm) 31 mm
O/A Ø (mm) 45 mm
Top plate thickness (mm) 4 mm
Weight (g) 140 g
See more

Description

For handling flexible loads

  • Removable handling ball.
  • Working height very close to the fixture height.
See more
