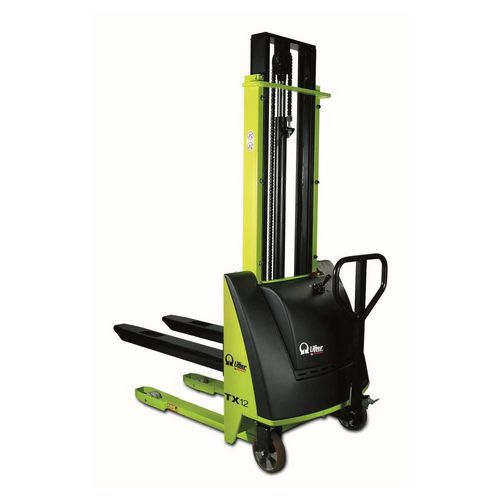

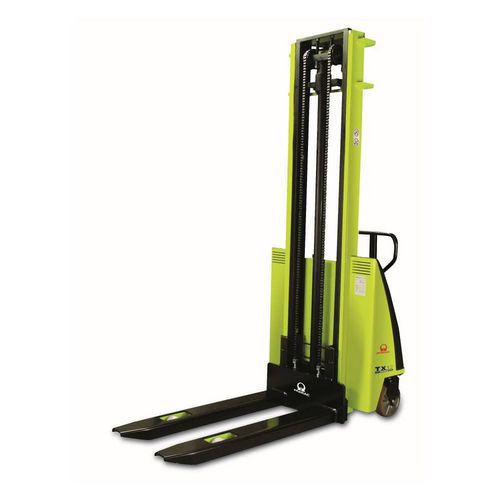

Pramac Electrohydraulic Stacker 1000kg 1510mm - TX 10/16

Manual traction stacker with electrohydraulic lift and 1000kg capacity

1000 kg load capacity for lifting and positioning palletised goods.
Electrohydraulic lifting system reduces operator effort during lifting tasks.
Manual traction provides simple and reliable manoeuvrability.
Maximum lift height of 1510 mm for warehouse storage applications.
Ergonomic tiller offers precise steering and directional control.

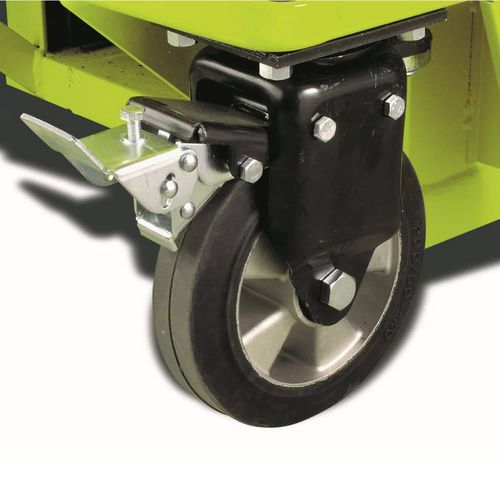

Foot-operated parking brake helps secure the stacker during use.
Integrated battery and charger support convenient operation.
Robust design provides stability when handling heavy loads.
AGM battery.

See more information...

Customer warranty : 1 year
Load capacity (kg) : 1000 kg

Pramac Electrohydraulic Stacker 1000kg 1510mm - TX 10/16

£3,555.00

excl. VAT

£4,266.00 incl. VAT

Item code:   AD57111

Quantity

Description

Manual traction stacker with electrohydraulic lift and 1000kg capacity

1000 kg load capacity for lifting and positioning palletised goods.
Electrohydraulic lifting system reduces operator effort during lifting tasks.
Manual traction provides simple and reliable manoeuvrability.
Maximum lift height of 1510 mm for warehouse storage applications.
Ergonomic tiller offers precise steering and directional control.
Foot-operated parking brake helps secure the stacker during use.
Integrated battery and charger support convenient operation.
Robust design provides stability when handling heavy loads.
AGM battery.

Note: A forklift truck must offload this item at the delivery address. If you do not have an onsite forklift truck, please call our sales team to quote for an updated carriage cost.

Customer warranty : 1 year
Load capacity (kg) : 1000 kg

Specifications

Product Information

Product Name	Pramac Electrohydraulic Stacker 1000kg 1510mm, Load capacity: 1000 kg, Max. lift height: 1510 mm
Brand	Pramac
Packaging	unit

Technical Specification

Load capacity (kg)	1000 kg
Max. lift height (mm)	1510 mm
Product weight (kg)	311 kg
Weight without batteries (kg)	293 kg
Fork length (mm)	1150 mm
Min. O/A height (mm)	90 mm
Max. O/A height (mm)	1510 mm
O/A length (mm)	1750 mm
No load descent speed (m/s)	0.1 m/s
Loaded descent speed (m/s)	0.4 m/s
Engine power (kW)	1.6 kW
No load lifting speed (m/s)	0.12 m/s
Loaded lifting speed (m/s)	0.09 m/s
Steeringwheel Ø (mm)	200 mm
Steering wheel material	Nylon
Min. lift height (mm)	90 mm
Fork wheel material	Rubber
Fork wheel Ø (mm)	82 mm
O/A height (mm)	1970 mm
Battery voltage (V)	12 V
Customer warranty	1 year
