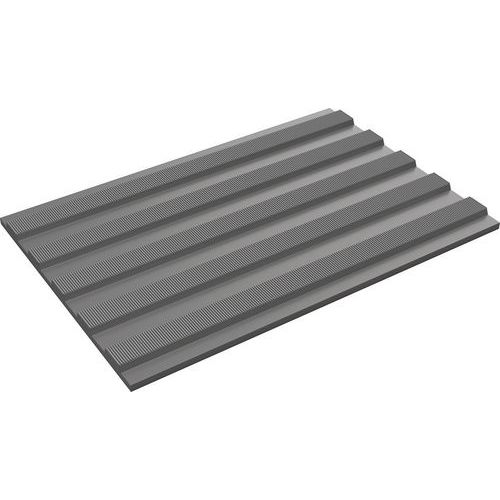

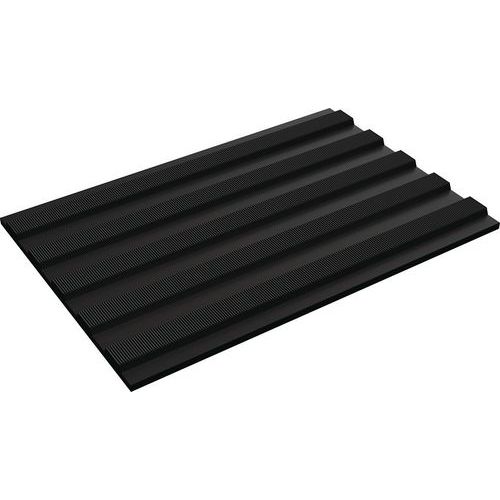

Non-Conductive PVC Electrical Safety Mat
£ 258.98
£ 310.78 (Incl. VAT)
unit

Description

Durable, electrical resistant PVC sheet with a textured broad rib surface for enhanced safety.
  • Effective insulation from electrical shocks.
  • Hard-wearing, with a ribbed, vinyl surface.
  • Ribbed surface catches and drains spills/debris, keeping the surface clear and protecting against slips.
  • Chemical, oil and acid resistant.

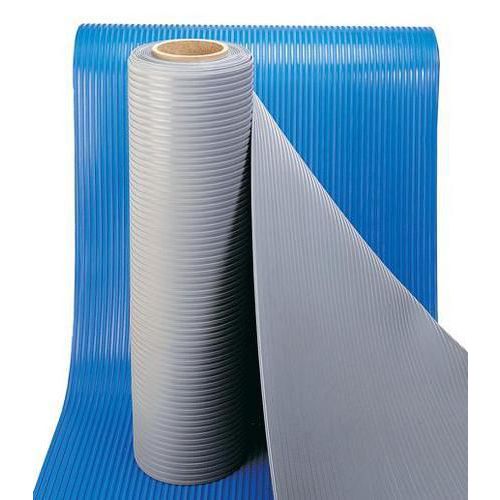

  • Easy to install - contours to uneven surfaces, and can be cut to fit on site.

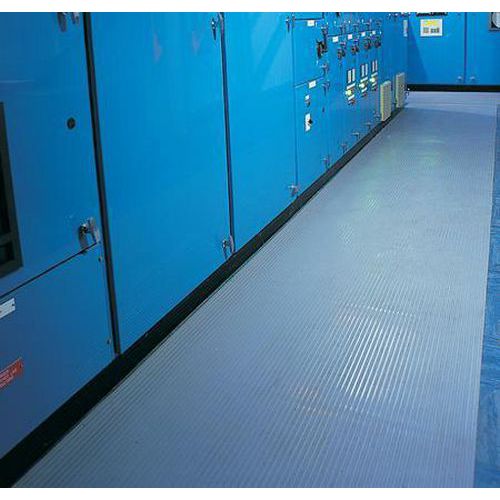

  • Can be used as flooring or bench-top matting to suit your needs.
  • Cleans with just a standard vacuum or mop.
  • Electrical Resistance:
  • BS 2782: Part 2 Method 230A.
  • Insulation resistance = greater than 2000M Ω.
  • Electric strength = 20,000 volts.
  • DIN 60243-1 (VDE 0303 part 21): 1999-03.
  • Breakdown voltage: 27.050 kV eff.
  • Fire resistance:
  • UL 94. Horizontal burning test. Classification 94HB.
  • yes
  • Heavy duty
  • 4
  • 2 years

Product Information

Product Name Non-Conductive PVC Electrical Safety Mat
Brand Plastex
Conditioning unit
Catalogue page 7

Technical Specification

Carpet use Heavy duty
Carpet thickness (mm) 4 mm
Non-slip yes
Material PVC
Length (m) 10 m
Width (mm) 1000 mm
Weight (kg/m²) 4.2 kg/m²
Customer warranty 2 years
Norm UL 94, Class HB
Acid & oil resistant yes
Min. operating temperature (°C) -23 °C
Electric Strength (Ohm) 2000 Ohm
Max. operating temperature (°C) +60 °C
