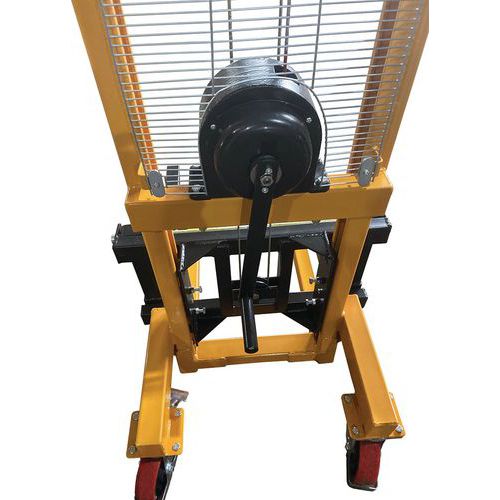

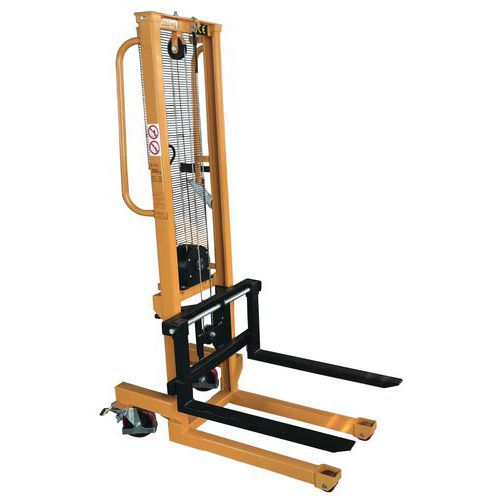

Manual pallet stacker - Capacity 250 kg
Manual pallet stacker, Load capacity: 250 kg, Max. lift height: 1560 mm, O/A length: 1325 mm
Manual pallet stacker, Load capacity: 250 kg, Max. lift height: 1560 mm, O/A length: 1325 mm
Click and drag to spin
Specifications
Product Information
| Product Name | Manual pallet stacker, Load capacity: 250 kg, Max. lift height: 1560 mm, O/A length: 1325 mm |
|---|---|
| Packaging | unit |
Technical Specification
| Load capacity (kg) | 250 kg |
|---|---|
| Min. lift height (mm) | 90 mm |
| Max. lift height (mm) | 1560 mm |
| O/A width (mm) | 725 mm |
| O/A length (mm) | 1325 mm |
| O/A height (mm) | 2030 mm |
| Fork length (mm) | 800 mm |
| Max. width across forks (mm) | 690 mm |
| Lifting height per beam movement (mm) | 40 mm |
| Fork width (mm) | 60 mm |
| Steering wheel width (mm) | 40 mm |
| Steeringwheel Ø (mm) | 150 mm |
| Customer warranty | 3 years |
| Min. width across forks (mm) | 150 mm |
