Safe storage of hazardous, flammable products in work areas. Robust and durable thanks to the steel outer structure, resistant to scratches. Compact folding doors that take up less space in front of the cabinet when it is open. Ergonomic design with doors that stay open in any position and close automatically in the event of a fire. Lockable doors, suitable for use with a central locking system, door locking indicator (red/green) for protection against unauthorised use.

See more information...

£6,034.80 incl. VAT

£5,029.00 excl. VAT

the set

Item code:   A517038

Add to Basket

Description

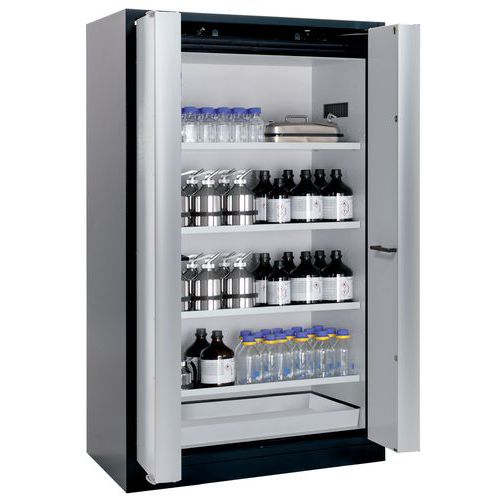

Safe storage of hazardous, flammable products in work areas. Robust and durable thanks to the steel outer structure, resistant to scratches. Compact folding doors that take up less space in front of the cabinet when it is open. Ergonomic design with doors that stay open in any position and close automatically in the event of a fire. Lockable doors, suitable for use with a central locking system, door locking indicator (red/green) for protection against unauthorised use.

Please note: For the technical ventilation of the cabinet, we recommend the integrated ventilation and filtration unit (this does not require holes to be made in the cabinet or exhaust pipes to be fitted to the outside). We also recommend the plinth to cover the integrated transport base.

Made in Germany
Made in Germany

Specifications

Product Information

Product Name	Q-PHOENIX-90 cabinet, O/A height: 1953 mm, O/A width: 1193 mm, O/A height (Range): High (1500 - 2300 mm)
Brand	Asecos
Packaging	the set

Technical Specification

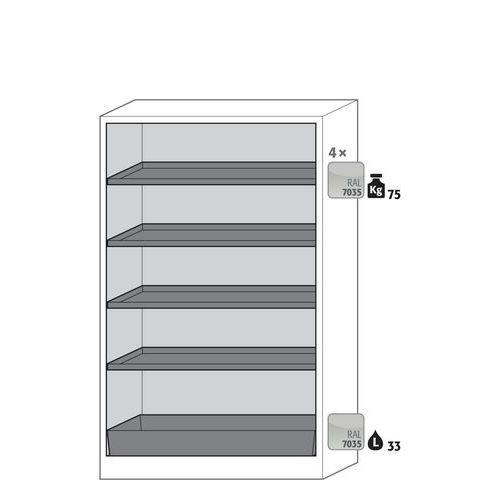

Model	4 x shelves, 1 x floor spill tray (epoxy-coated sheet steel)
Spill containment capacity (L)	33 L
Number of shelves	4
Number of doors	2
For products	FLAMMABLE
Frame colour	ANTHRACITE
Door colour	LIGHT GREY
O/A width (mm)	1193 mm
O/A depth (mm)	615 mm
O/A height (mm)	1953 mm
Effective width (mm)	1050 mm
Effective depth (mm)	522 mm
Useful heights (mm)	1647 mm
Material	STEEL
Product weight (kg)	481.628 kg
RAL	7016
Type of lock	Integrated lock with visual indicator
Number of compartments	1
O/A height (Range)	HIGH (1500 - 2300 MM)
Fire resistance	90 MIN
Product origin	Made in Germany
EN Norm	EN 14470-1
O/A width (Range)	+ 800 MM
