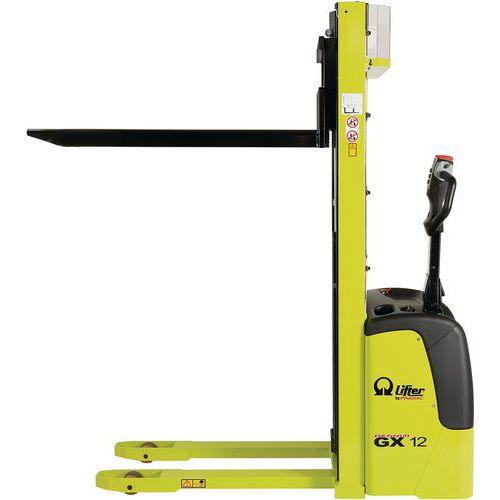

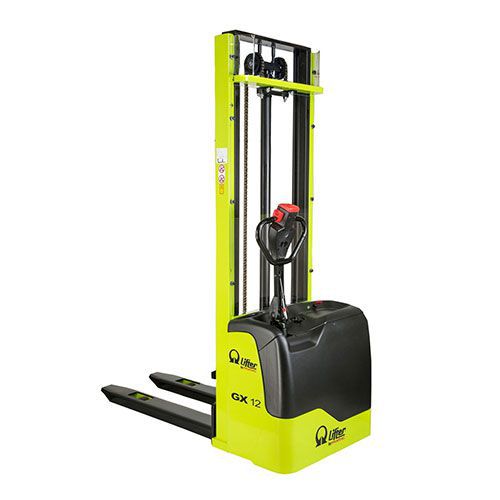

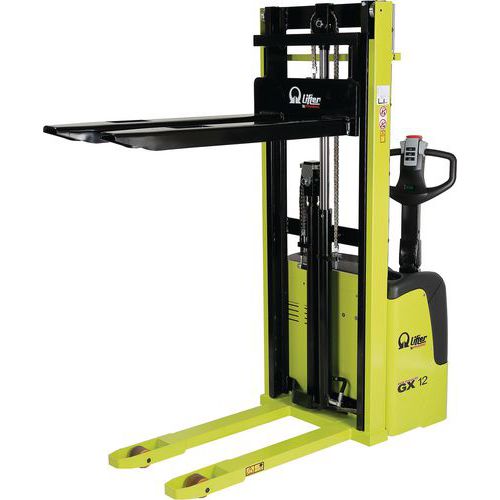

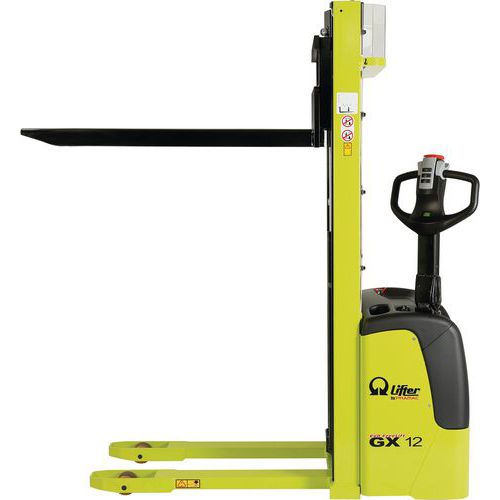

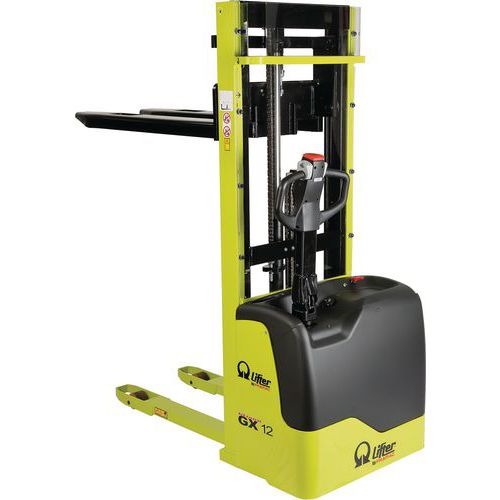

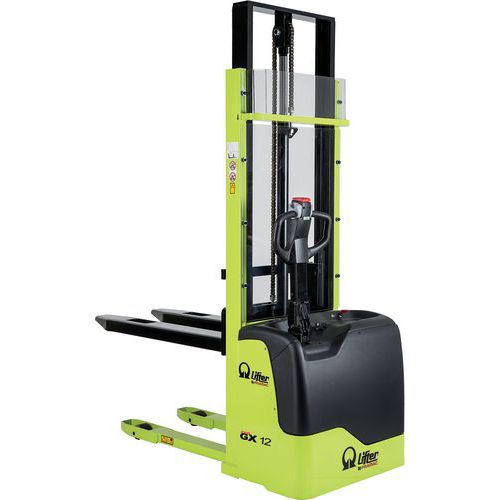

GX12 BASIC/EVO Compact Electric Stacker 1200kg Capacity

X
GX12 BASIC/EVO Compact Electric Stacker 1200kg Capacity

GX BASIC Model is equipped with metal tube and ergonomic controls.
  • Manufactured with a lateral driving system and wide mast positioning assures great manoeuvrability and stability.
  • Complete with built-in battery and charger with integrated cable and plug.
  • Designed with easy use fingertip controls for use on the throttle, fork control, horn and safety push button.
  • Compact design allows user to work in narrow spaces with increased movement and a reduced turning radius.
  • A815232 has an long-life EVO gel battery rather than an acid battery.
See more description
From
£4,859.00
 excl. VAT
£5,830.80 incl. VAT
unit
See all 3 options
  • Free delivery on all orders
  • Free returns within 30 days
  • Pay by card, account or Paypal
  • We'll beat any price by 5%

There are 3 options to select from

product image
A338778
Max. lift height (mm)
2410 mm
No load descent speed (m/s)
0.15 m/s
O/A height (mm)
2992 mm
Loaded descent speed (m/s)
0.12 m/s
Product Name
GX12 BASIC/EVO Compact Electric Stacker 1200kg Capacity
Brand
Pramac
Packaging
unit
Load capacity (kg)
1200 kg
O/A width (mm)
800 mm
O/A length (mm)
1760 mm
Fork length (mm)
1150 mm
No load lifting speed (m/s)
0.19 m/s
Battery voltage (V)
24 V
Moving speed with load (km/h)
4.7 km/h
Moving speed without load (km/h)
5.2 km/h
Ergonomic
yes
Steeringwheel Ø (mm)
250 mm
Steering wheel width (mm)
76 mm
Fork wheel Ø (mm)
82 mm
Loaded lifting speed (m/s)
0.11 m/s
Forks Int. Gap (mm)
560 mm
Turning radius (mm)
1430 mm
Steering wheel material
Polyurethane
Product origin
Made in the EU
Fork width (mm)
150 mm
Fork wheel material
Rubber

£4,859.00 excl. VAT

unit
product image
A338758
Max. lift height (mm)
3410 mm
No load descent speed (m/s)
0.15 m/s
O/A height (mm)
3916 mm
Loaded descent speed (m/s)
0.12 m/s
Product Name
GX12 BASIC/EVO Compact Electric Stacker 1200kg Capacity
Brand
Pramac
Packaging
unit
Load capacity (kg)
1200 kg
O/A width (mm)
800 mm
O/A length (mm)
1760 mm
Fork length (mm)
1150 mm
No load lifting speed (m/s)
0.19 m/s
Battery voltage (V)
24 V
Moving speed with load (km/h)
4.7 km/h
Moving speed without load (km/h)
5.2 km/h
Ergonomic
yes
Steeringwheel Ø (mm)
250 mm
Steering wheel width (mm)
76 mm
Fork wheel Ø (mm)
82 mm
Loaded lifting speed (m/s)
0.11 m/s
Forks Int. Gap (mm)
560 mm
Turning radius (mm)
1430 mm
Steering wheel material
Polyurethane
Product origin
Made in the EU
Fork width (mm)
150 mm
Fork wheel material
Rubber

£5,229.00 excl. VAT

unit
product image
A815232
Max. lift height (mm)
3500 mm
No load descent speed (m/s)
0.3 m/s
O/A height (mm)
3916 mm
Loaded descent speed (m/s)
0.25 m/s
Product Name
GX12 BASIC/EVO Compact Electric Stacker 1200kg Capacity
Brand
Pramac
Packaging
unit
Load capacity (kg)
1200 kg
O/A width (mm)
800 mm
O/A length (mm)
1760 mm
Fork length (mm)
1150 mm
No load lifting speed (m/s)
0.19 m/s
Battery voltage (V)
24 V
Moving speed with load (km/h)
4.7 km/h
Moving speed without load (km/h)
5.2 km/h
Ergonomic
yes
Steeringwheel Ø (mm)
250 mm
Steering wheel width (mm)
76 mm
Fork wheel Ø (mm)
82 mm
Loaded lifting speed (m/s)
0.11 m/s
Forks Int. Gap (mm)
560 mm
Turning radius (mm)
1430 mm
Steering wheel material
Polyurethane
Product origin
Made in the EU
Fork width (mm)
150 mm
Fork wheel material
Rubber

£6,075.00 excl. VAT

unit

Common description for all models

GX BASIC Model is equipped with metal tube and ergonomic controls.
  • Manufactured with a lateral driving system and wide mast positioning assures great manoeuvrability and stability.
  • Complete with built-in battery and charger with integrated cable and plug.
  • Designed with easy use fingertip controls for use on the throttle, fork control, horn and safety push button.
  • Compact design allows user to work in narrow spaces with increased movement and a reduced turning radius.
  • A815232 has an long-life EVO gel battery rather than an acid battery.
  • Made in the EU
  • Load capacity (kg) : 1200

Environmental and/or social benefits

This product is ergonomic, which means that using it will ensure good working conditions with regard to the user's health and safety (e.g. it helps to minimise the risk of developing musculoskeletal problems).
