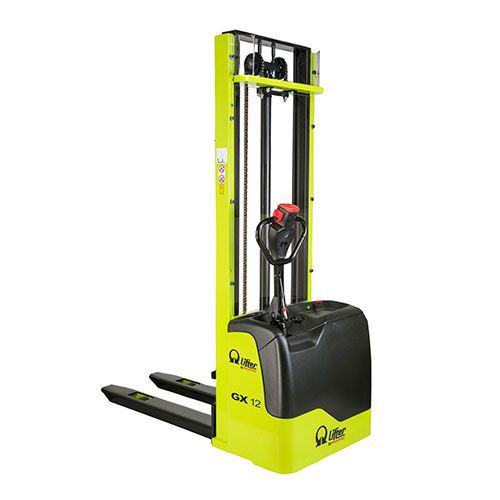

GX12 BASIC/EVO Compact Electric Stacker 1200kg Capacity

Max. lift height (mm):

No load descent speed (m/s):

Weight (kg):

O/A height (mm):

Loaded descent speed (m/s):

GX BASIC Model is equipped with metal tube and ergonomic controls.

Manufactured with a lateral driving system and wide mast positioning assures great manoeuvrability and stability.
Complete with built-in battery and charger with integrated cable and plug.
Designed with easy use fingertip controls for use on the throttle, fork control, horn and safety push button.
Compact design allows user to work in narrow spaces with increased movement and a reduced turning radius.
A815232 has an long-life EVO gel battery rather than an acid battery.

See more description

Made in the EU
Load capacity (kg) : 1200

X

GX12 BASIC/EVO Compact Electric Stacker 1200kg Capacity

From

£4,859.00

excl. VAT

£5,830.80 incl. VAT

unit

Item code: : Select a variant

Add to Basket

Description

GX BASIC Model is equipped with metal tube and ergonomic controls.

Manufactured with a lateral driving system and wide mast positioning assures great manoeuvrability and stability.
Complete with built-in battery and charger with integrated cable and plug.
Designed with easy use fingertip controls for use on the throttle, fork control, horn and safety push button.
Compact design allows user to work in narrow spaces with increased movement and a reduced turning radius.
A815232 has an long-life EVO gel battery rather than an acid battery.

Please ensure there are facilities to remove the stacker from the delivery vehicle before placing order.

Made in the EU
Load capacity (kg) : 1200

Environmental and/or social benefits

This product is ergonomic, which means that using it will ensure good working conditions with regard to the user's health and safety (e.g. it helps to minimise the risk of developing musculoskeletal problems).

Specifications

Product Information

Product Name	GX12 BASIC/EVO Compact Electric Stacker 1200kg Capacity
Brand	Pramac
Packaging	unit

Technical Specification

Load capacity (kg)	1200 kg
O/A width (mm)	800 mm
O/A length (mm)	1760 mm
Fork length (mm)	1150 mm
No load lifting speed (m/s)	0.19 m/s
Battery voltage (V)	24 V
Moving speed with load (km/h)	4.7 km/h
Moving speed without load (km/h)	5.2 km/h
Fork width (mm)	150 mm
Product origin	Made in the EU
Steering wheel material	Polyurethane
Steeringwheel Ø (mm)	250 mm
Steering wheel width (mm)	76 mm
Fork wheel Ø (mm)	82 mm
Loaded lifting speed (m/s)	0.11 m/s
Forks Int. Gap (mm)	560 mm
Turning radius (mm)	1430 mm
Fork wheel material	Rubber
Ergonomic	yes
