Description

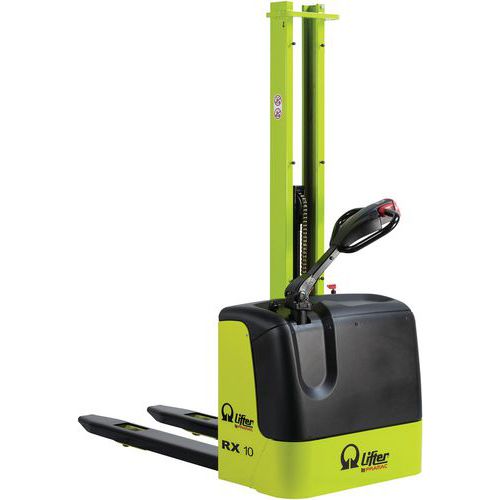

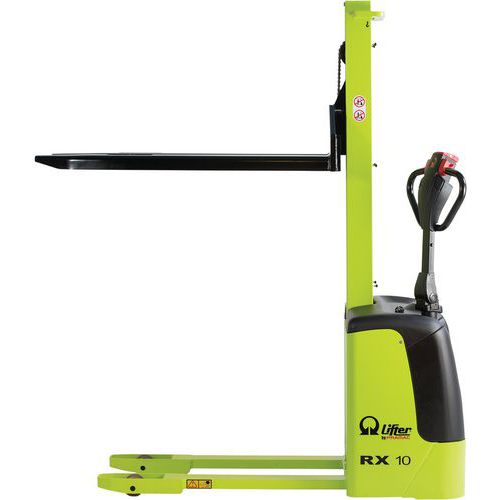

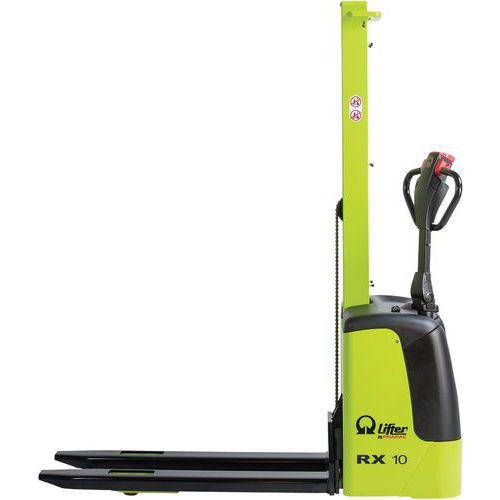

This compact stacker is suitable for up to 1000kg light duty lifting
- The powerful batteries are semi-traction for multiple charging cycles and offer up to 4 hours of use.

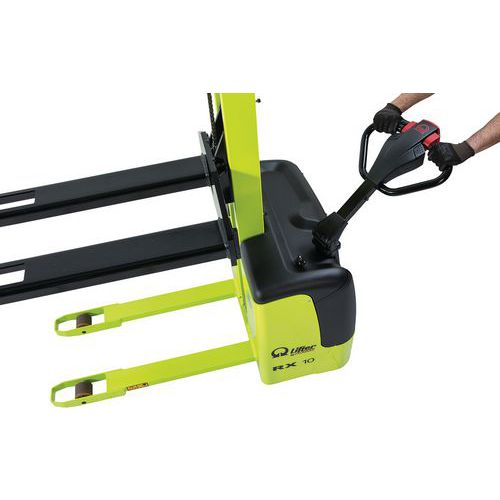

- A built-in ergonomic tiller system includes safety push-button, horn, turtle button, fingertip throttle and fork controls.
- 60mm thick forks give you easier access to pallets.
- The strong ABS cover has handy storage compartments on top.
- The maintenance covers are easy to remove, allowing you easy access to the components without needing to raise the stacker.
- Integrated on board battery charger.
- 1000 kg
Specifications
Product Information
Brand | Pramac |
---|---|
Packaging | unit |
Technical Specification
Load capacity (kg) | 1000 kg |
---|---|
Max. lift height (mm) | 1510 mm |
Weight without batteries (kg) | 333 kg |
O/A width (mm) | 794 mm |
O/A length (mm) | 1675 mm |
Fork length (mm) | 1153 mm |
No load lifting speed (m/s) | 0.21 m/s |
No load descent speed (m/s) | 0.18 m/s |
Battery voltage (V) | 24 V |
Moving speed with load (km/h) | 3.7 km/h |
Moving speed without load (km/h) | 4.3 km/h |
O/A height (mm) | 1970 mm |
Steering wheel width (mm) | 50 mm |
Loaded lifting speed (m/s) | 0.12 m/s |
Fork width (mm) | 150 mm |
Forks Int. Gap (mm) | 560 mm |
Steeringwheel Ø (mm) | 186 mm |
Turning radius (mm) | 1344 mm |
Fork wheel Ø (mm) | 82 mm |
Ergonomic | yes |
Loaded descent speed (m/s) | 0.18 m/s |
Steering wheel material | Polyurethane |
Fork wheel material | Rubber |
